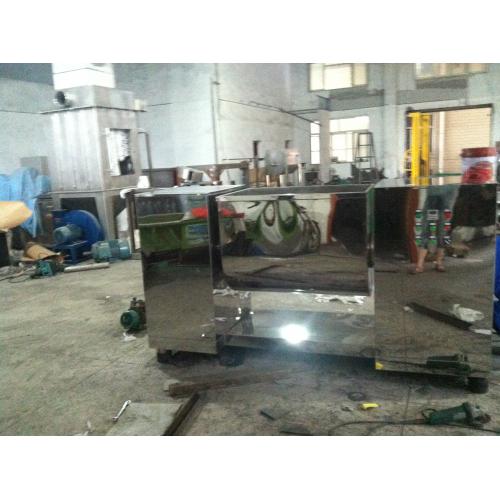

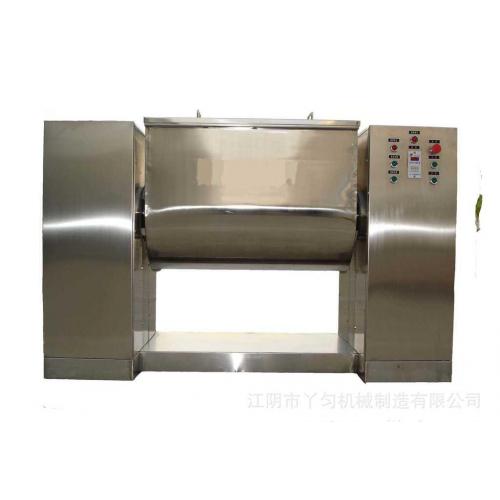

This CH Trough type mixing machine is designed for thoroughly mixing powders or pastes. It is a horizontal through type mixer with single stirring arm. The stirring arm is removable so that it is easy to clean. The parts’ surfaces which may touch the mixing materials are made of stainless steel, so they are good corrosion-resitent. The mixing trough can automatically reverse for discharge.
Working Principle:
Stype agitating paddle is rotated through mechanical driving, which pushes the material turn repeatedly and mix uniformly. Operated with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus, it improves the mixing quality of each batch of material.
Technical Parameter:
|
Model
|
CH100
|
|
Working volume
|
100
|
|
Agitating motor
|
2.2
|
|
Discharging motor
|
0.55
|
|
Overall dimension
|
1400×580×1000
|
|
Weight
|
350
|
|
Turning angle
|
<105°
|
|
Speed of agitating paddle
|
24
|
|
Type of paddle
|
S type single paddle
|
