详细信息

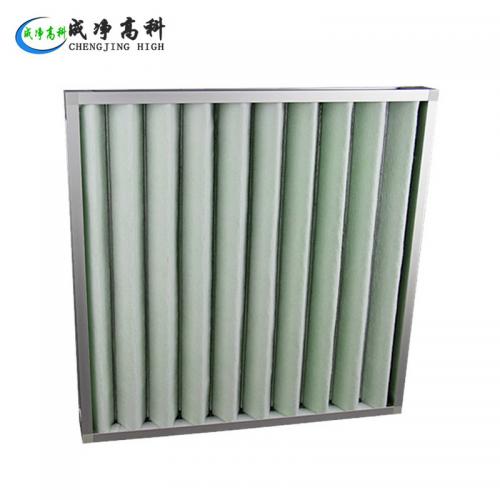

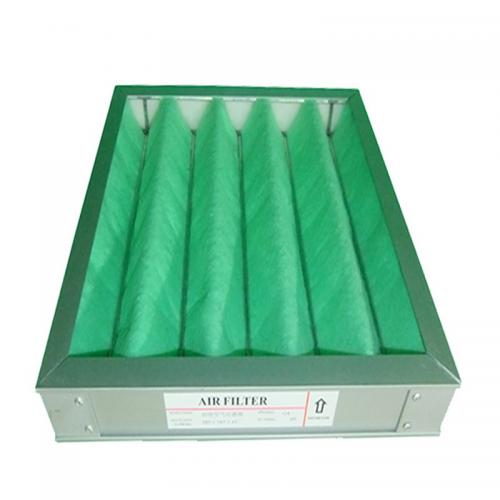

Fold-down coarse efficiency air filter
特点Features
●纸框或铝合金金属外框
●阻力小、风量大
●适用于空调系统的初级过滤
●Paper box or aluminum metal frame
●Responding to small resistance, air
●Applicable to air conditioning system adopts the primary filtration
型号尺寸及其他参数
Standard specification
|
型号 model |
外形尺寸 Outside Dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Initial resistance (Pa) |
效率（级别） Efficiency(class) |
滤料型号 Model of filter media |
|
|
CJ-S4-1 |
295×295×46mm 12″×12″×13/4″ |
800m3/h |
25Pa |
50% (计重法) weight |
G3 G4 |
绿色、蓝色、白色初效过滤棉 Green, blue, white, early filter cotton effect |
|
CJ-S4-2
|
495×295×46mm 20″×12″×13/4″ |
1300m3/h |
||||
|
CJ-S4-3
|
495×495×46mm 20″×20″×13/4″ |
2200m3/h |
||||
|
CJ-S4-4
|
595×295×46mm 24″×12″×13/4″ |
1600m3/h |
||||
|
CJ-S4-5
|
595×495×46mm 24″×20″×13/4″ |
2700m3/h |
||||
|
CJ-S6-6
|
595×595×46mm 24″×24″×13/4″ |
3200m3/h |
||||
*可要据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
