[新品] DPC型真空输送设备(vc100~600)

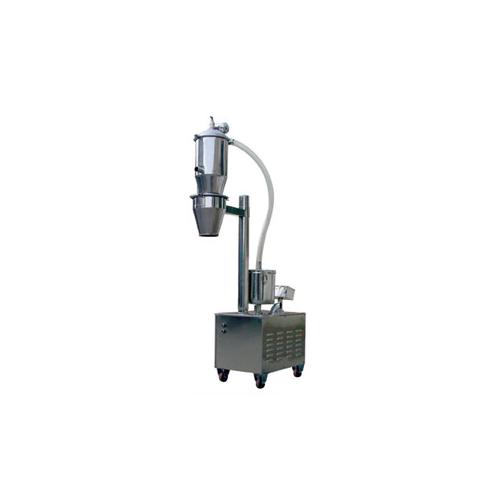

DPC型真空输送设备
供应商参考报价:¥40000
  供应商信息
· 上海千鸟机械设备有限公司 [上海市] 加为商业伙伴
  发送站内消息
联系人: 吴先生
所在城市: 上海市 上海
详细地址: 上海市奉贤区林海公路6626弄2号
联系我们 更多产品 进入商铺

详细信息

DPC型真空输送设备/热卖DPC180/250/320/430型真空输送设备

产品介绍 Product introduction:
上海拜博机械设备有限公司生产的真空输送机、负压输送机、气力输送机、真空加料机、真空输送设备、粉体加料机、自动上料机、真空上料机、粉体上料机、粉体输送机、真空给料机、自动给料机等产品引进当今德国***先进的技术,整个输送过程完全在密闭的状态下完成,杜绝粉尘对工作环境、周边环境和操作人员所带来的污染和伤害,适用于制药、食品、化工、电池等行业。

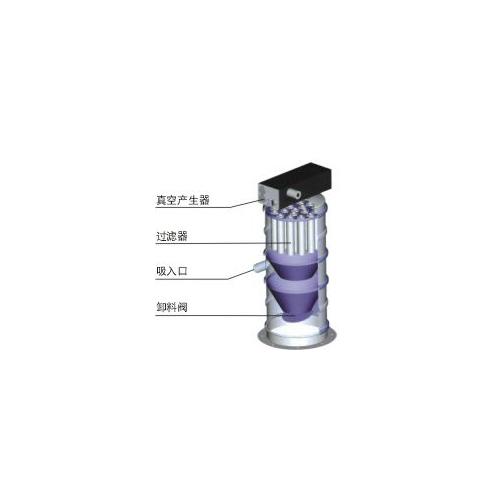

工作原理 Principles:
a) 真空泵B2通过真空输送设备的分离容器产生真空。将物料从进料口B1通过吸料软管与吸料口吸入。
The vacuum pump generates a vacuum in Vacuum Conveyor separator tank. Air rushes in through the hose/pipe and the suction inlet from the feeding point. The bulk material is aspirated and then carried in this air stream.
b) 在分离容器的过滤仓内分离空气与物料,将物料收集在料仓中。旋风分离器阻止细小粉末进入过滤器B3,以提高过滤 器的效率。
Inside the separator tank a filter module separates air and product. The material is kept and collected in the separator. The separator provides higher transportation capacities because of a lower load of the filter elements.
c) 料仓充满物料时,真空泵自动关闭,输送设备内的压力达到平衡。放料阀B4开启,物料通过出料口流出,并直接落入储料容器C。
When the separator is filled with product, the vacuum pump switches off, inside of the vacuum conveyor the pressure is balanced to surrounding area with tenth of a second. The separated material discharged from the vacuum conveyor through the discharge element and fall into the tank directly.
d) 出料时,过滤舱被反冲气囊自动清洁。其特制的振动器可辅助下料,以提高输送粘稠物的效率。
Along with the discharging the filter module is cleaned automatically by an air shock system. We offer vibrators to improve the discharging for sticky or highly bridging bulk materials.
e) 出料舱关闭,整个输送流程再次启动。
After unloading the product the discharge element closes and the whole conveying cycle start again.
产品特点 Product features
★ 密闭输送,无粉尘泄漏,无交叉污染
transmission in sealed condition, dust free, no cross-contamination;
★ 符合GMP标准,满足CIP要求,可提供无菌级产品
According to GMP and CIP standards, sterile products are available;
★ 模块化设计,杜绝死角,拆装、清洗快捷方便
Modular design, no dead angles, simple dismounting and cleaning;
★ 有效解决粉体颗粒的分层现象
Avoiding delaminating phenomenon;
★ 有效消除物料静电,对周围环境无污染
Avoiding static electricity, no contamination to the environment:
★ 自动控制,操作简单、方便
Automatic control, simple operation;
★ 工作过程无热量产生,安全防爆
No heat-generating, explosion-proof working flow;
★ 无振动、低噪音,高效节能,运行、维护费用低
No vibration, low noise, high efficiency energy saving, low cost;
