功能特点

1 本机装有通用型锥形支撑，可满足一般瓶口的要求，特殊尺寸可以配做。
2 输送带传送部分采用微型调速马达，用无级调速的方式调整速度，以适应不同工件的不同要求。
3 喷火头及汇流器设计先进独到，燃料利用效率高，是节能产品。
4 电镀铝合金槽、锥形支承，镀亮蓝链板，更显本机美观适用。
5 整机结构新颖、设计合理、操作方便、底部装有活动脚轮，移动方便。

技术参数

火焰宽度：200MM
旋转制具：40个工位
燃烧气体：标准石油气
助燃气体：压缩空气8KGf/CM2
电源：220V/50Hz
输送带速度：2-10m/min
输送带尺寸：1890×360mm（长×宽）
外形尺寸：2200×530×1300mm （长×宽×高）
重量：100KG

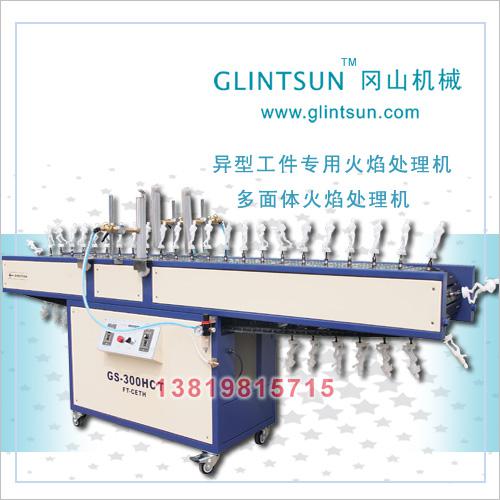

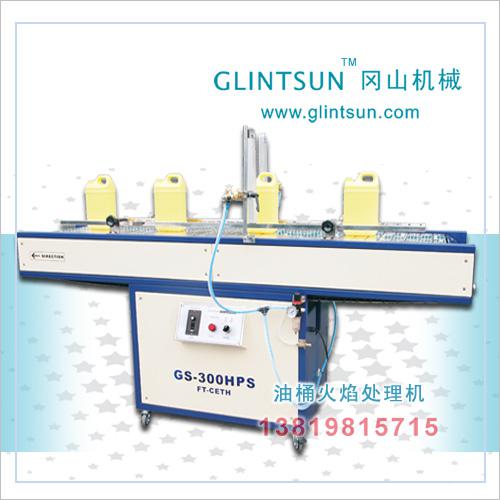

Feature

1.Assembled with general purpose conical holder can meet the normal requirements, special size is also available by made to order.
2.Micro motor adopted for conveyor adjusts speed by stepless speed adjusting mode to meet the requirements of various workpiece.
3.Advanced and unique designs of gushing nozzle and distributor make fuel utilization rate high, so it is an energy-saving product.
4.Electroplated aluminum alloy holder and blue bright plating conveyor make nice appearance.
5.The structure of the machine is new, design is reasonable, operation is convenient, and assembled with movable roller wheels to make convenient move.

Parameter

Frame width: 200mm;
Combustion gas: standard petrolic gas;
Combustion-supporting gas: compression air with pressure 8KGF/cm2;
Power Supply: 220V/50Hz;
Conveyor speed: 2~10m/min;
Speeed adjustment speed: electronic stepless change;
Conveyor size: 1890×360mm(L×W);
Dimension: 2000×530×1300mm(L×W×H);
Weight: 100KG.
